Application scenario
Touch display is thinner and more fashionable, suitable for:
Gaming
Medical automatic terminal
Bank automatic terminal
Public display industry
Features and advantages
3840×2160 Ultra HD, exquisite and gorgeous colors, restore real colors under different lighting conditions, meet the needs of different industries for color restoration, and can easily attract users’ attention
Projection capacitor (pcap) touch technology, which can support 10 touch points, has the advantages of fast response, high touch accuracy, and no touch pressure
Toughened glass, smoother surface, smoother touch control, high-strength protection
Ultra thin design, novel and beautiful appearance, fast and simple installation.
Stronger structural compatibility, compatible with various stand-alone versions, Android network versions, x86 and other different solutions, capacitance g+g and non touch (optional)
Wide voltage range, can work normally at AC100 ~ 240V/DC 24V
Energy saving, environmental protection, low energy consumption, low calorific value, suitable for long-term continuous work

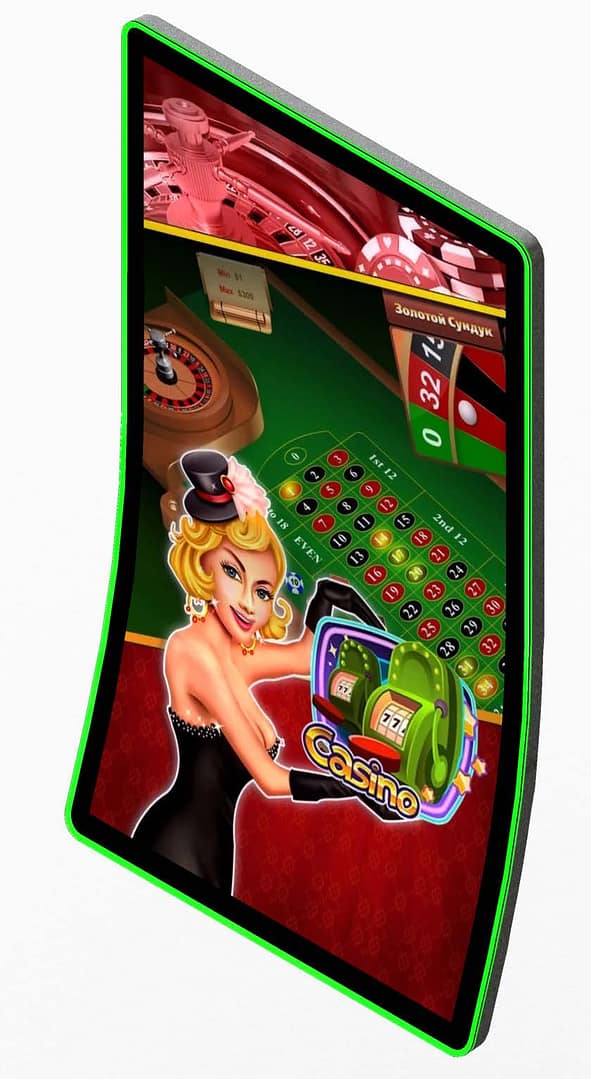

| 43, 49 and 55 Inch J Type Touch Monitor | ||
| Display | Active Area (mm) | 1073.78 mm（H) x 604 mm(V) |
| Aspect Ratio | 16/9 | |
| BLU | LED | |
| BLU Life | 30000Hr | |
| Resolution | 3840×2160 | |
| Brightness (typical) | LCD panel: 500 nits | |
| Contrast Ratio | 1000:1 | |
| Response Time-total (typical) | 6ms | |
| Pixel Pitch (Sub Pixel) | 0.2796（H）×0.2796（V）mm | |
| Display Colors | 1.07G | |
| Viewing Angle | Horizontal: ±89° or 178° total / | |
| Vertical: ±89° or 178° total | ||
| Touch Panel | Radius of curvature | 1500R |
| Cover Glass Thickness(Total) | 4 mm | |
| Touch Technology | PCAP(GFF) | |
| Response Time | <5ms | |
| Touch Point | 10 | |
| Touch Screen Interface | USB | |
| I/O Ports | HDMI 1.4 | 2PCS |
| HDMI 2.0 | 1PCS | |
| DP | DP 1.2A | |
| Lighting Connector | Molex-39-01-2081 | |
| AC IN (Optional) | 100-240VAC | |
| DC IN (Optional) | 24V /5A | |
| Touch Connector | USB-B | |
| MTBF | 50000 Hours | |
| Warranty | 1years | |
| Approvals and declarations | CE FCC CCC | Optional |
| Power Consumption | 110W | |
| Power Supply | 100-240VAC/24V DC | |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F | |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F | |
