1. Scope

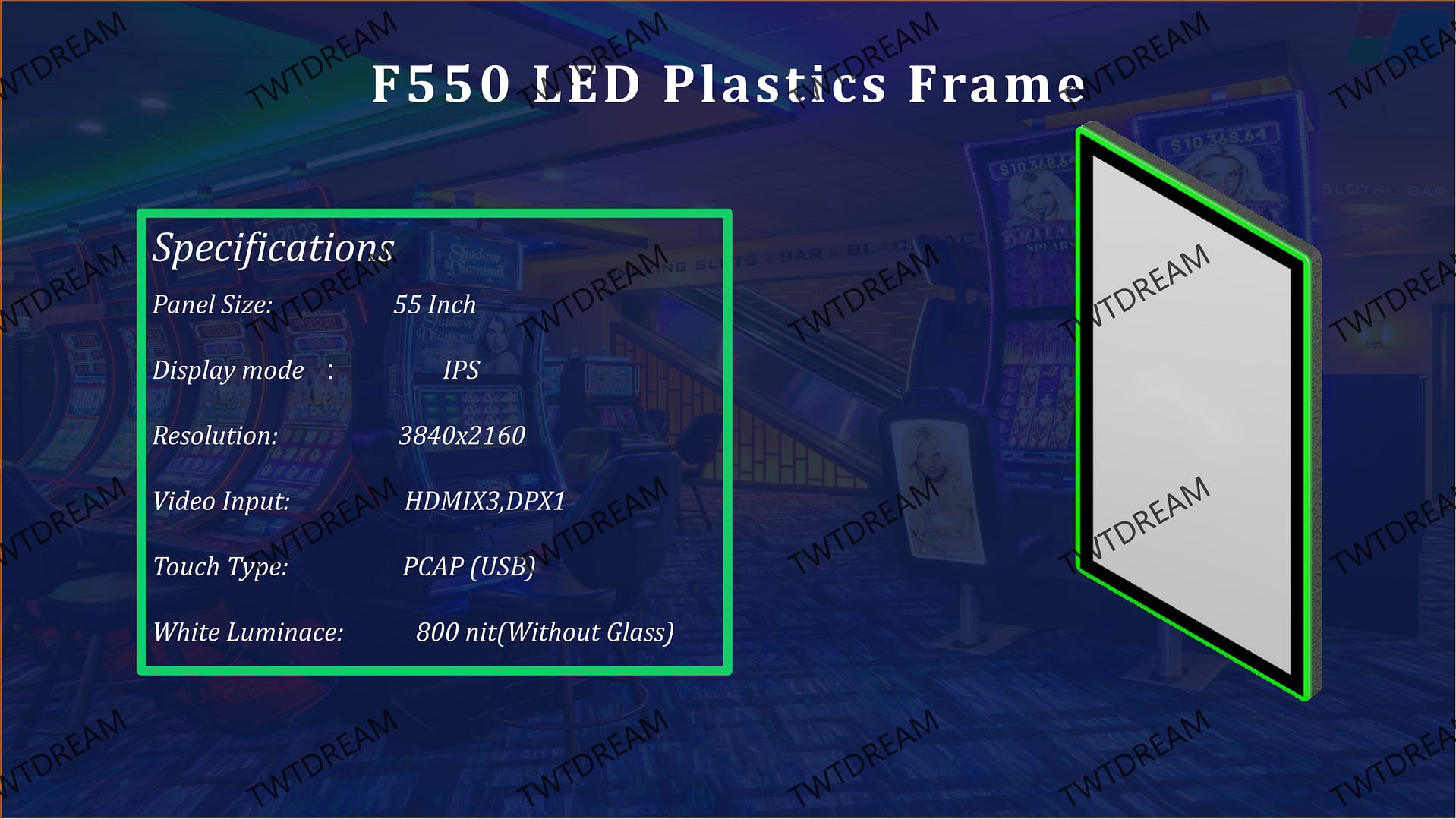

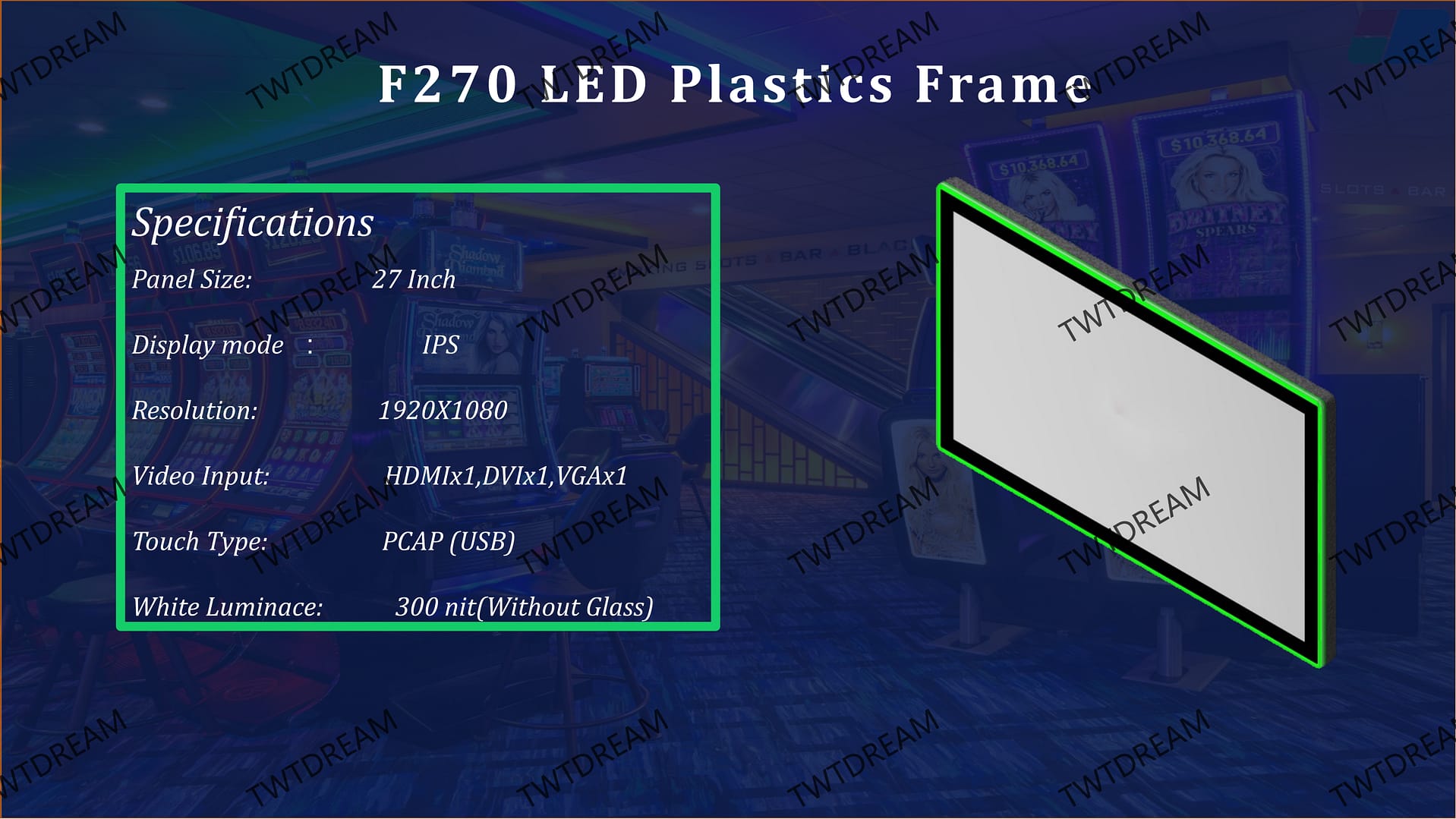

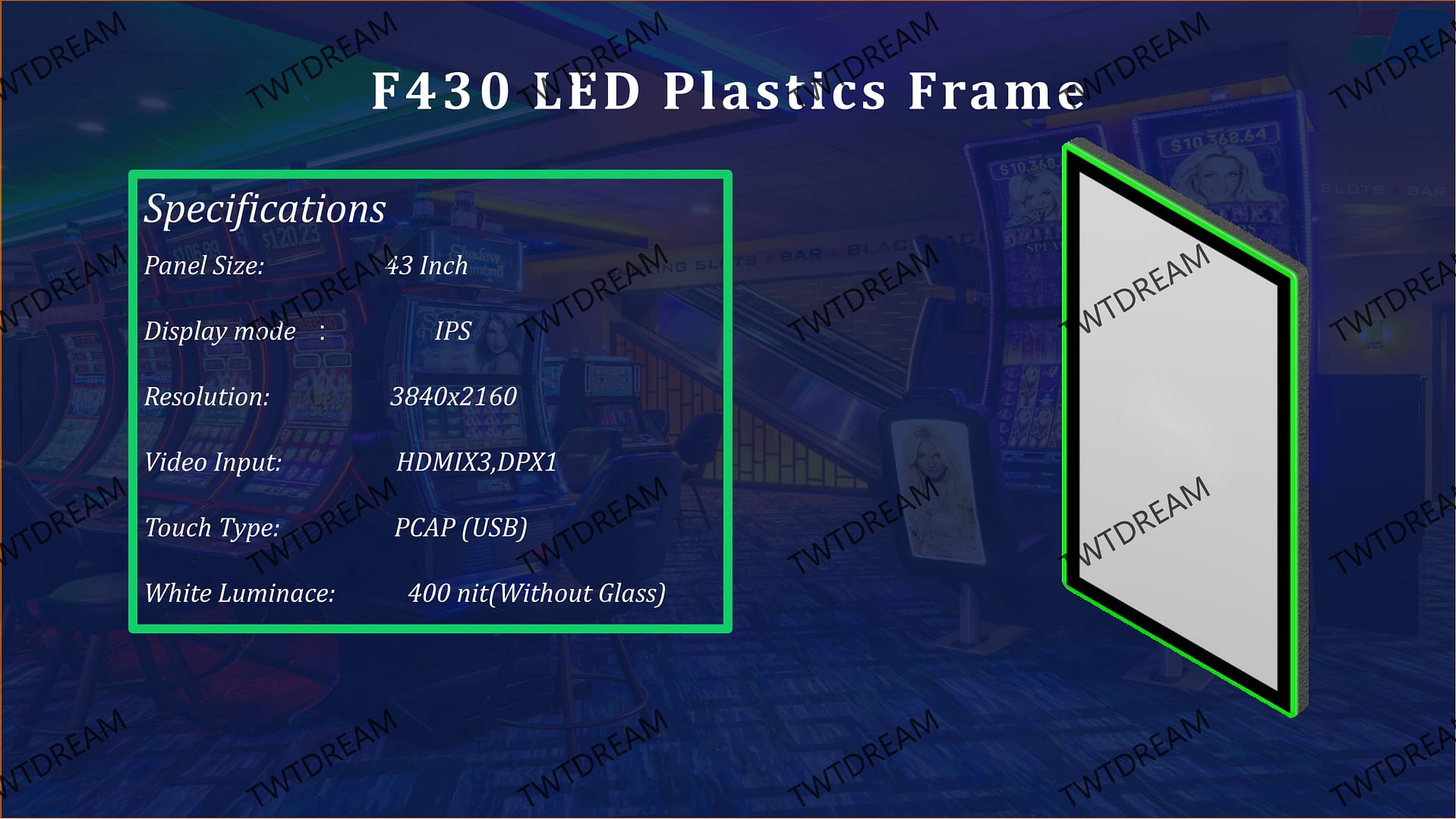

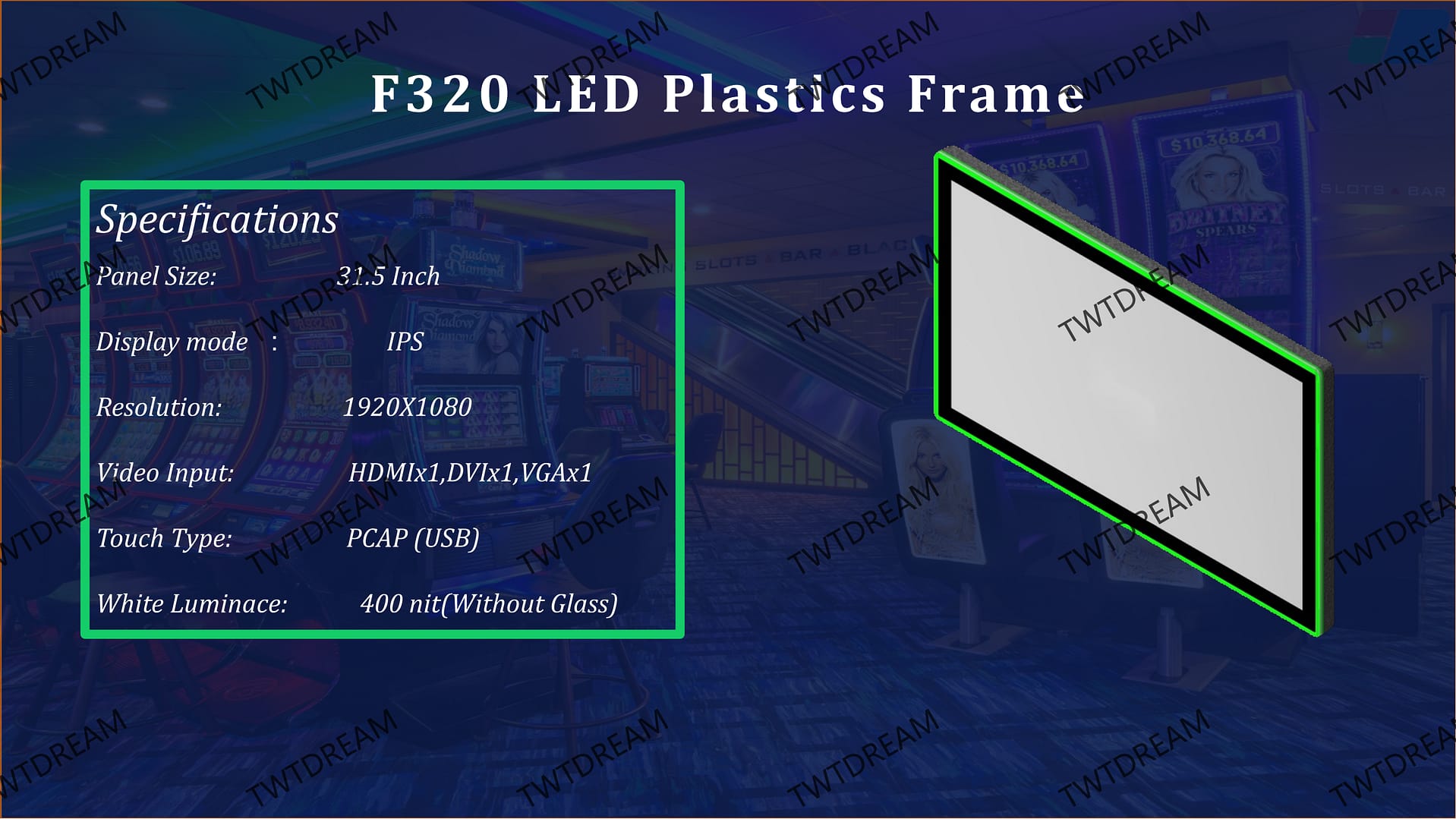

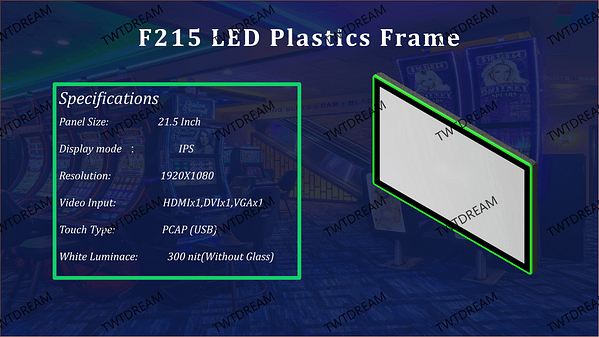

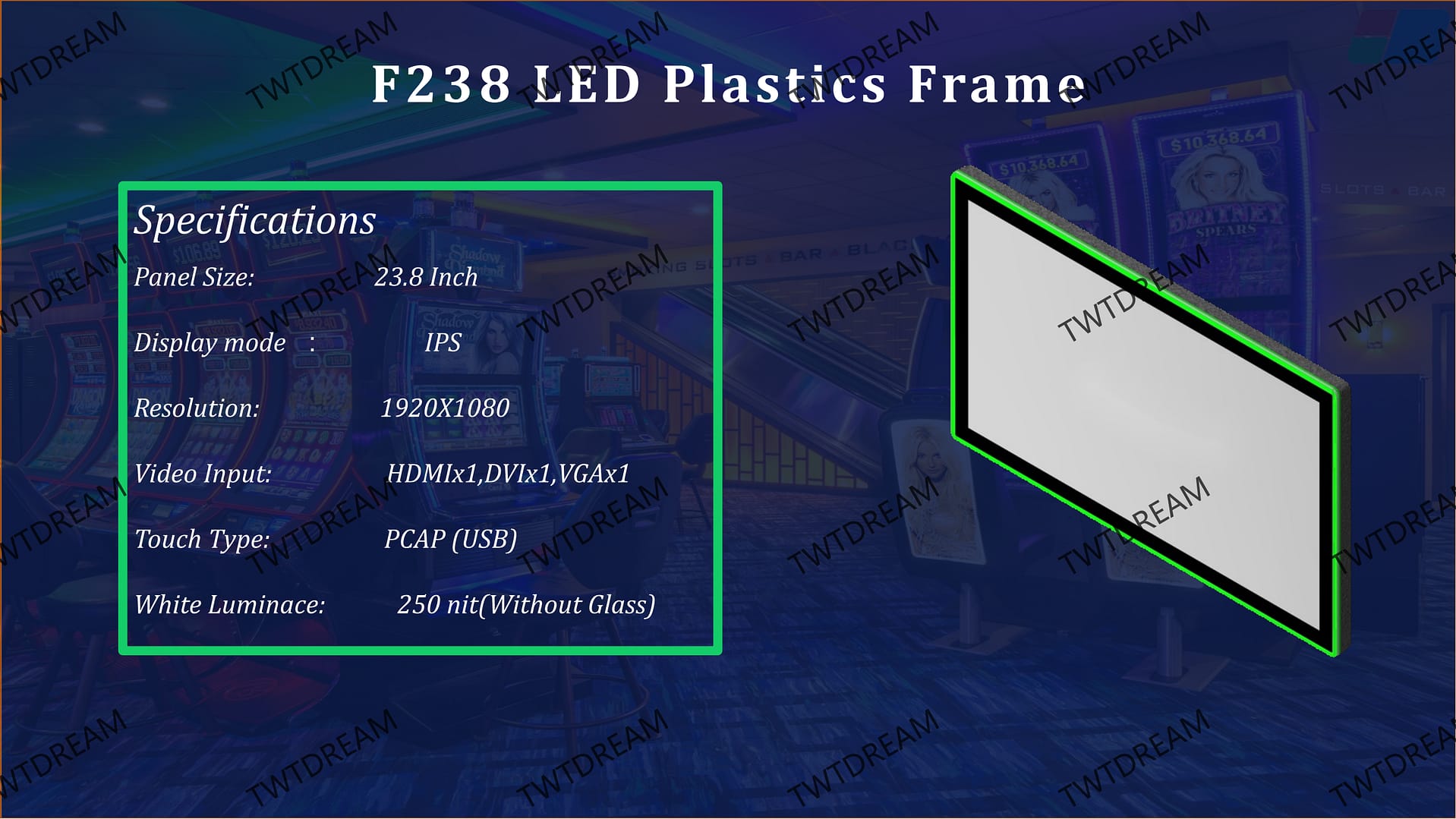

This document is the specification of 21.5, 22, 24, 27, 32, 43 and 55 Inch Flat MONITOR for application of Multi–sync. This
monitor is a High quality FHD TFT-LCD display solution for industrial display device having RoHS
conformity.
2. Features
– Supports up to 1920 x 1080, 60Hz
– On Screen Display (OSD)
– 8-bit(6bit+FRC) Color depch,display 16.7M colors
– HDMI DVI VGA for Panel interface
–
3. Electrical Specification
3.1 Input Power
3.1.1 Input power is required as
Voltage : Monitor – DC IN 12[V] / 3.00[A]
LED – DC [12V] / 4.00[A]
Consumption: Monitor 15[W] Max
LED – 25 [W] Max
3.2 Input Signal
3.2.1 HDMI Port input: V2.0
DVI Port input: V1.0
VGA Port input
HDMI Port input: V1.2
Line IN :PJ-325-5P

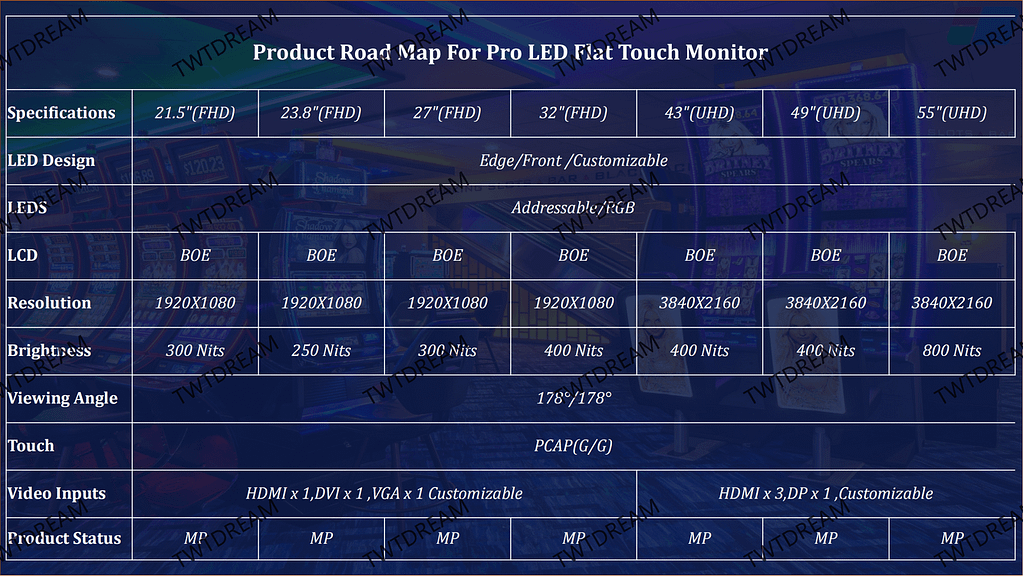

| 21.5, 22, 24, 27, 32, 43 and 55 Inch LCD Panel Specifications | |||
| Item | Specification | Unit | Remark |
| Display Area | 698.4(H) x 392.9 (V) | mm | |
| Driver Element | a-Si TFT active matrix | Dot | |
| Display Colors | 16.7M (8bit ) | Color | |
| Number of Pixel | 1920 x 1080 | Pixel | |
| Pixel Arrangement | RGB Vertical Stripe | ||
| Pixel Pitch | 0.2483(H) x 0.2483 (W) | mm | |
| Display Mode | Normally Black | ||
| Viewing Angle | 89/89/89/89 (U/D/L/R) | Degrees | CR≥10 |
| Weight | TBD | g | Max. |
| Contrast Ratio | Typ = 1000:1 | Center of Screen | |
| Response Time | On/Off = 14 ms | Typ. | |
| White Luminance | TYP = 300cd/m2 | cd/m2 | Center of Screen |
| Brightness Uniformity | Min = 75 % | % | |
